Product Features
1. Automatic mantle loading machine, automatic unloading machine and other systems, fully automated unmanned operation;
2. High purity 99.3% alumina anti-corrosion furnace jaw, acid-breaking erosion resistance, ultra-long furnace life;
3. Ultra-low thermal conductivity nano-grade insulation materials, good insulation effect, energy saving and environmental protection;
4. Intelligent PID regulation, temperature stability, small temperature difference in cross-section, consistent firing;
5. Unique inlet and exhaust methods, uniform atmosphere, stable quality;
6. Furnace pressure can be controlled, display the pressure of each point of the furnace chamber, to ensure the high quality of the product
7. The transmission is adjusted by floating universal joints, and the frequency conversion speed control can effectively reduce the amount of serpentine and run smoothly;
Technical Parameters

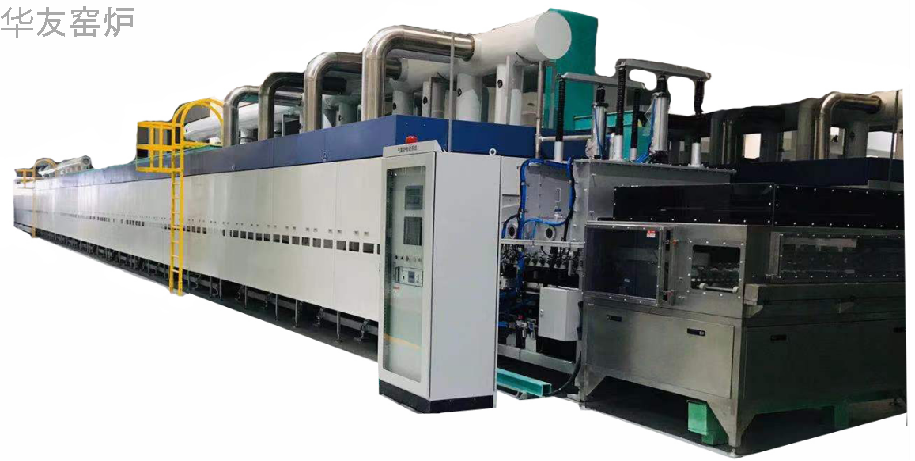

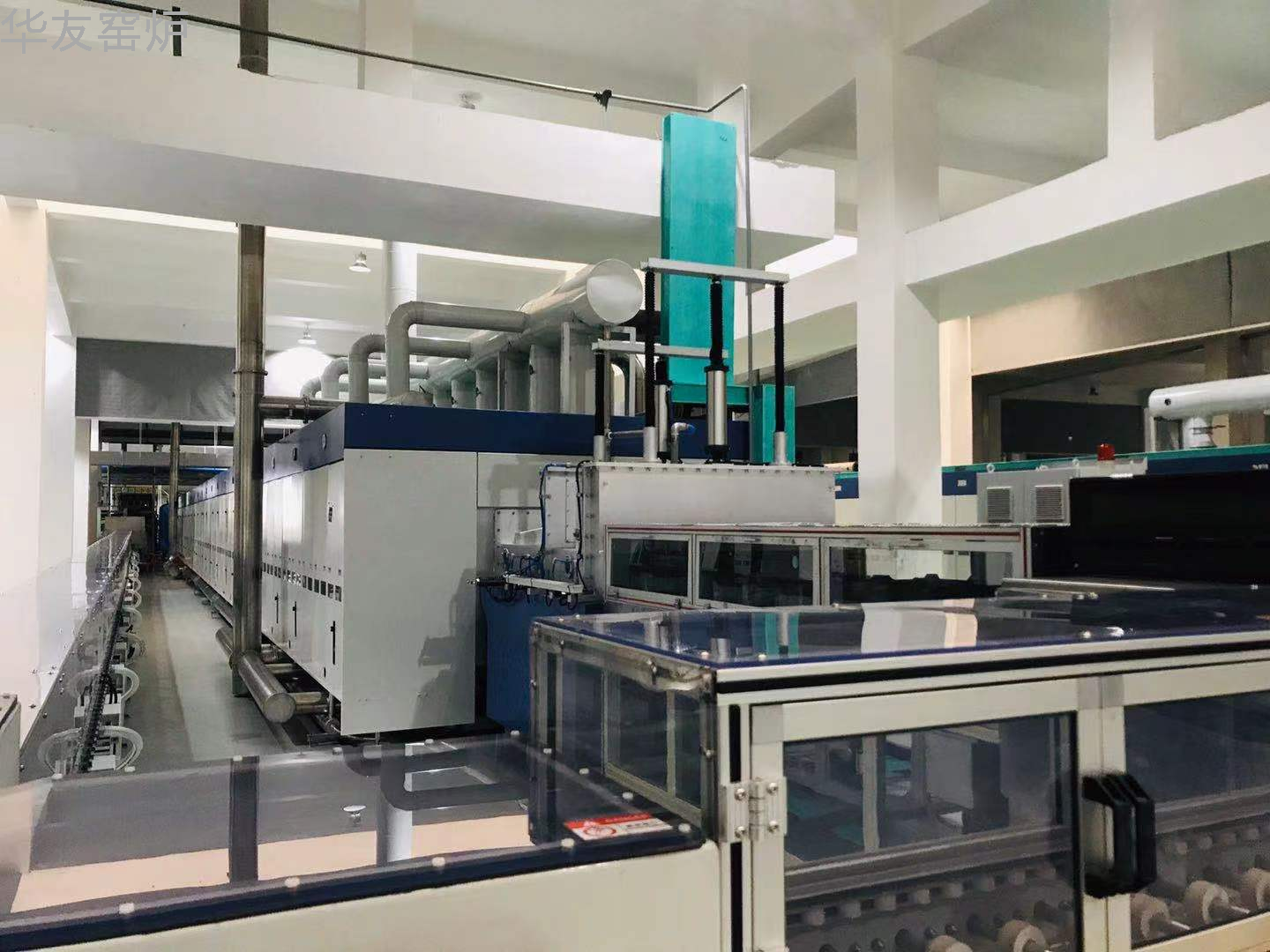

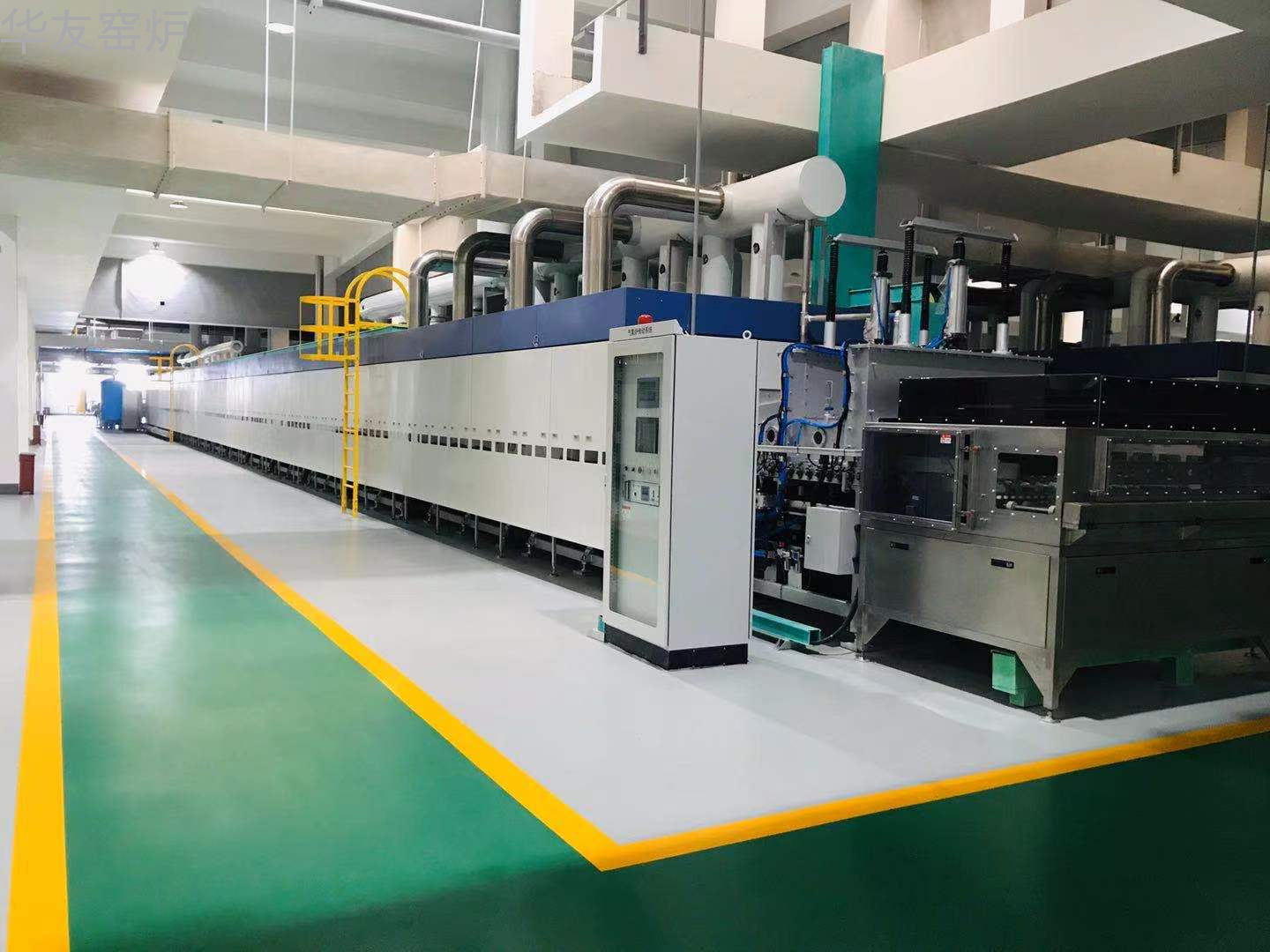

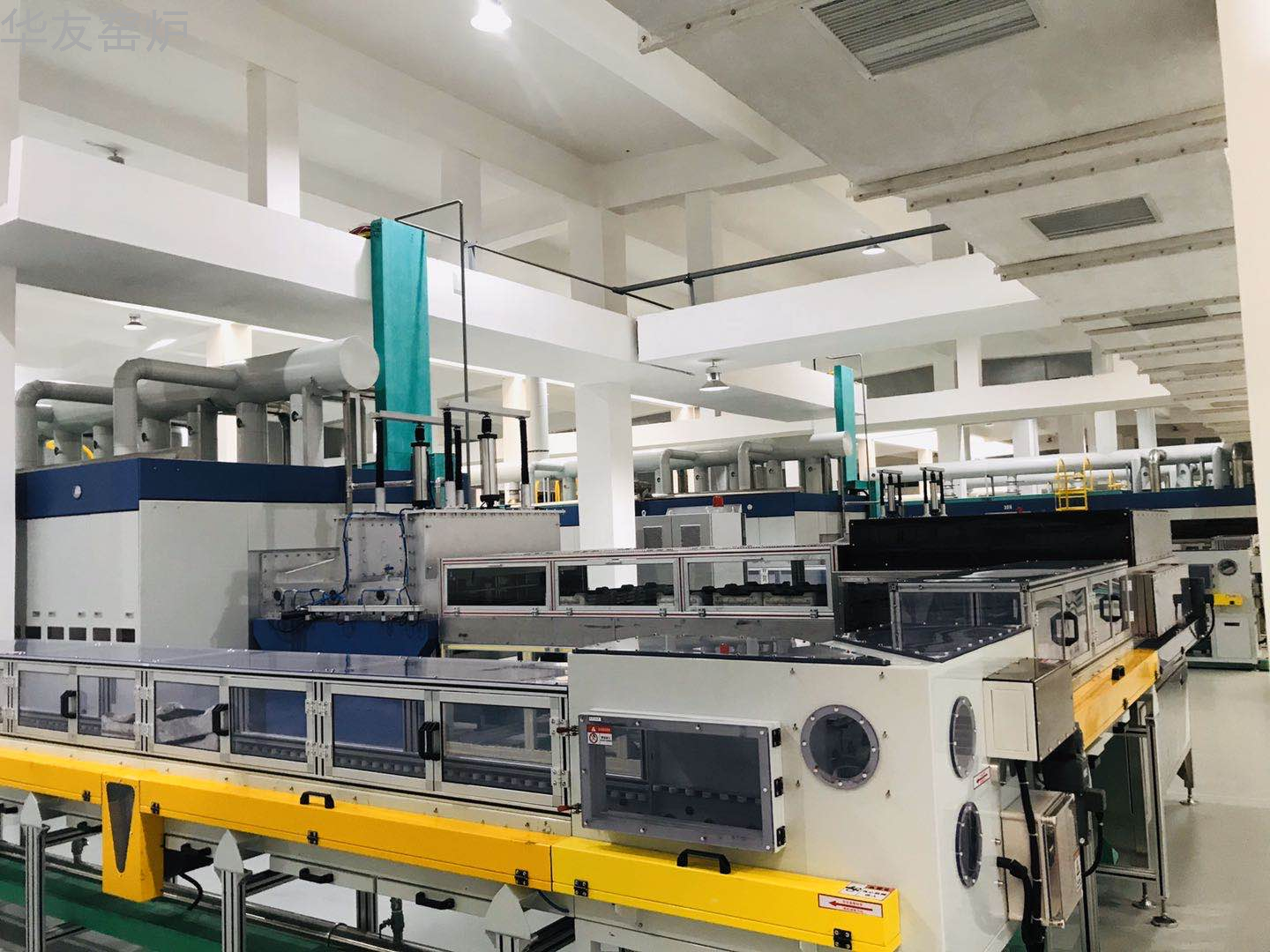

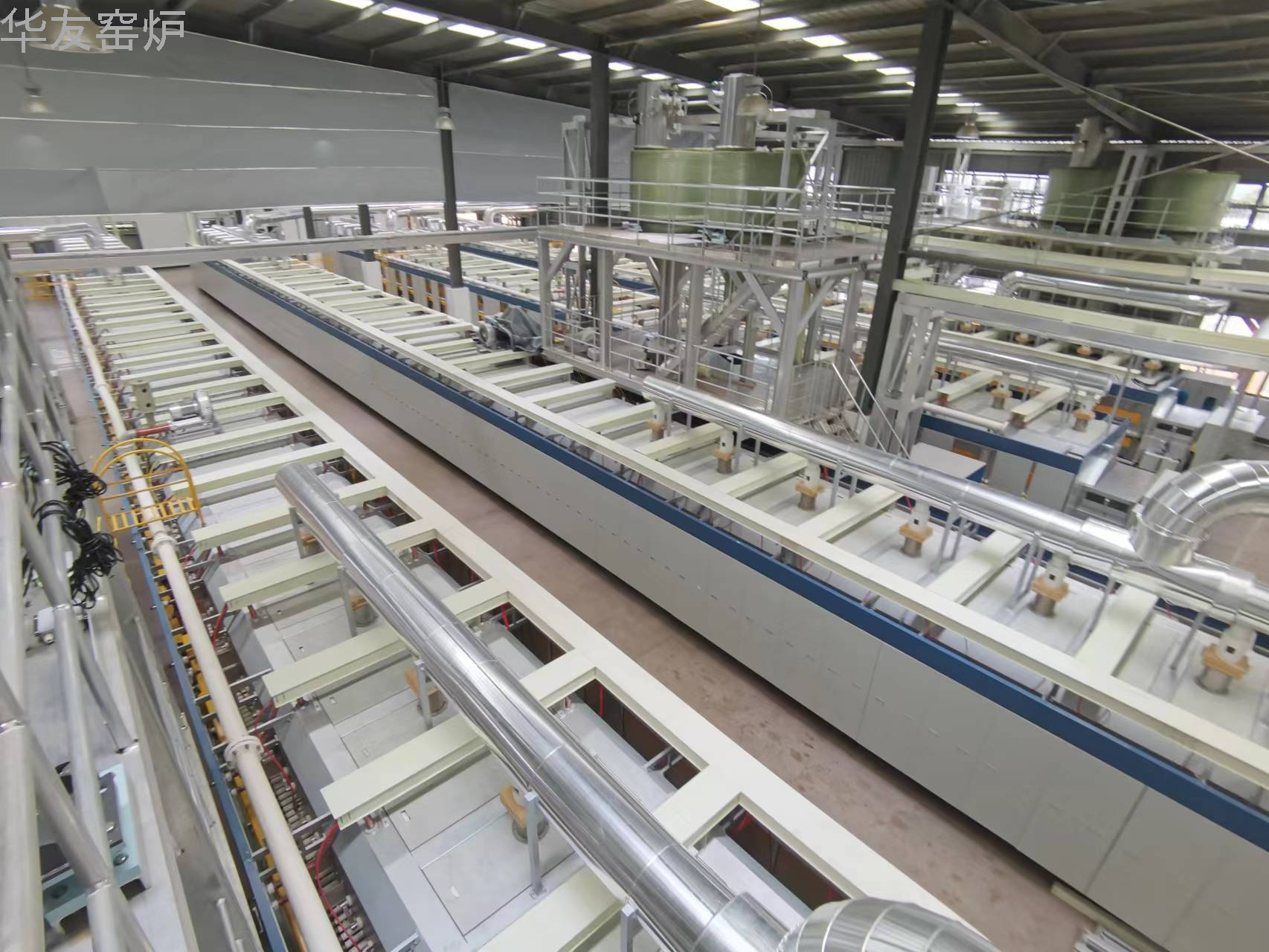

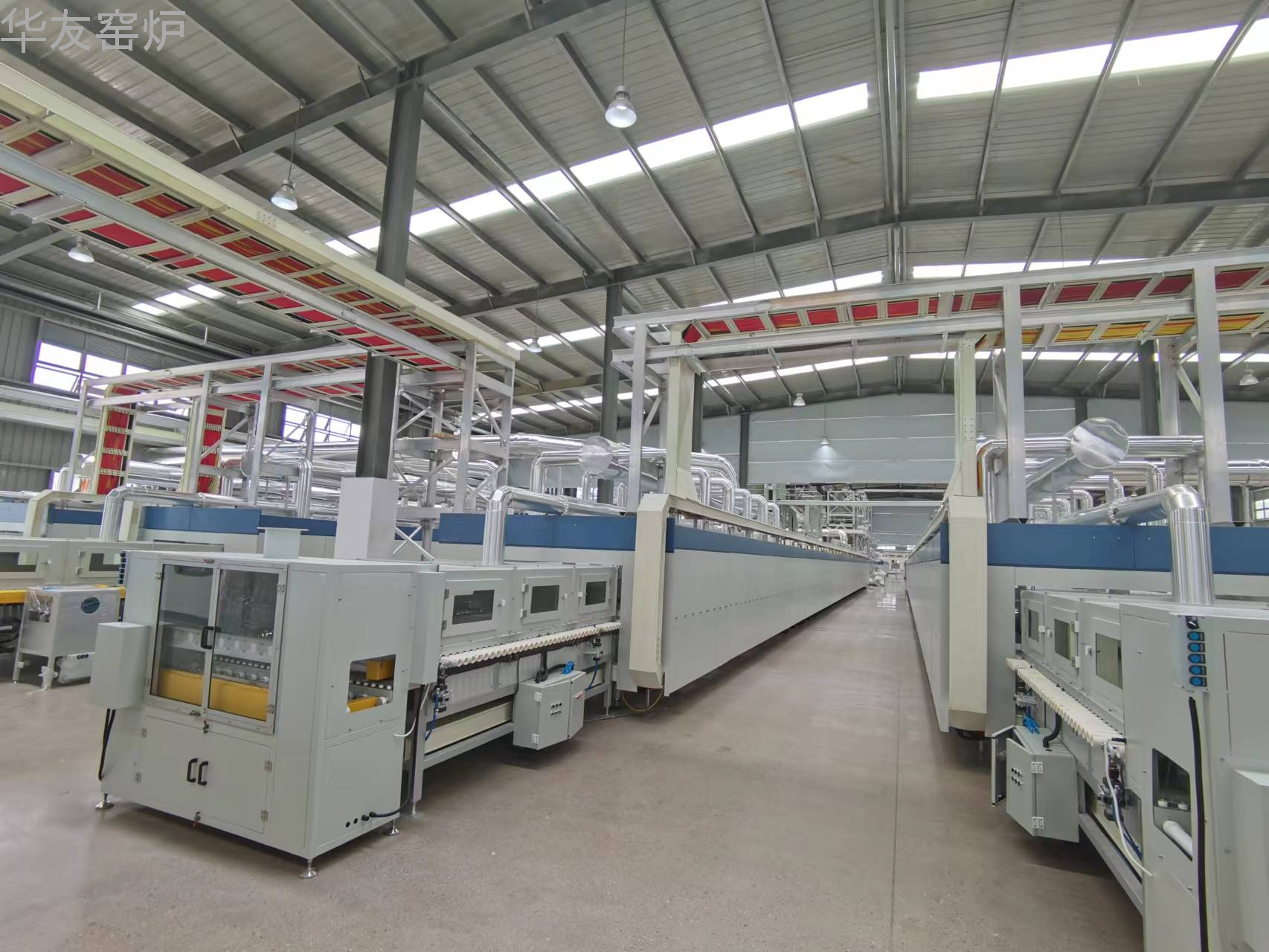

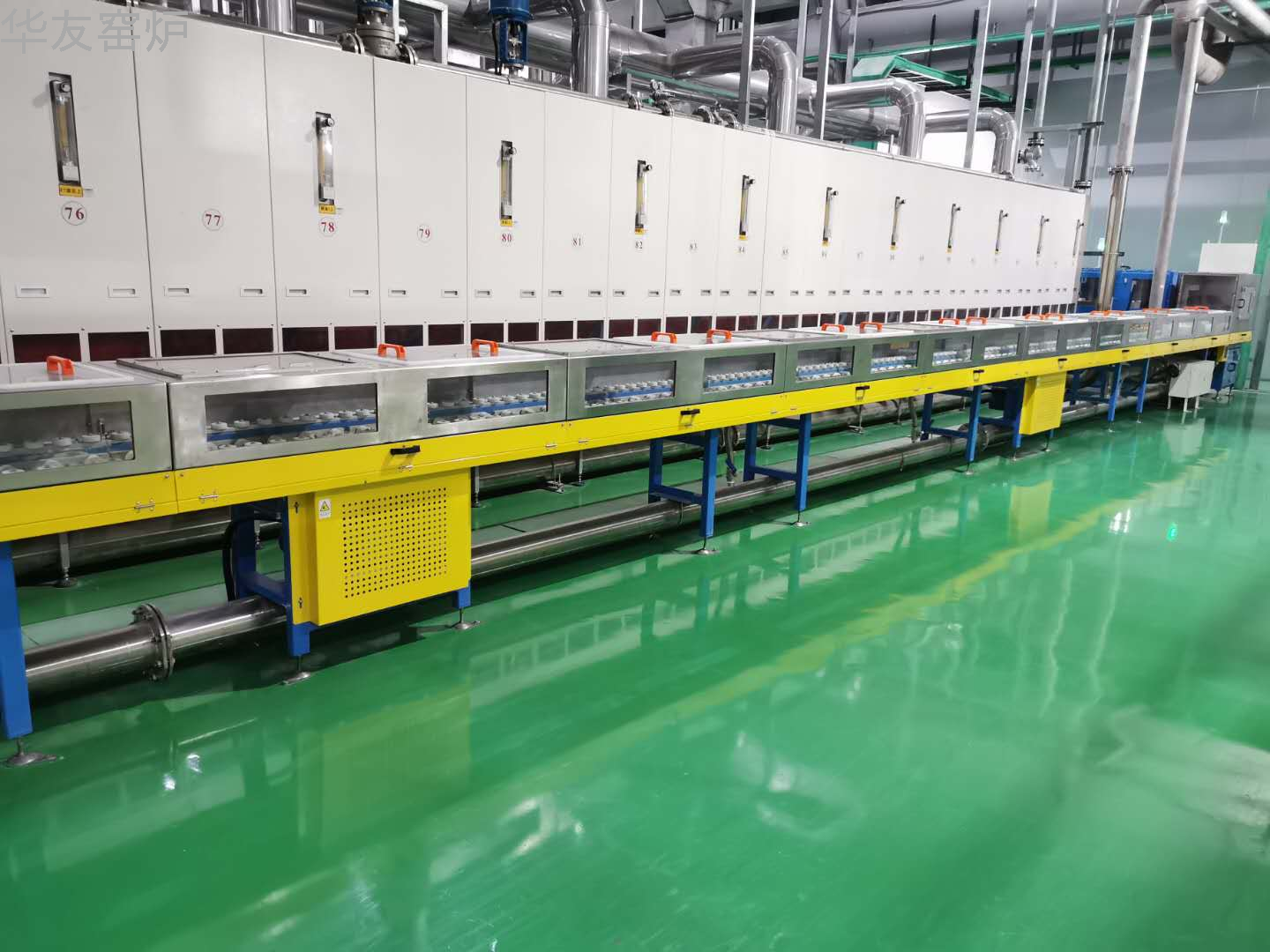

Furnace type: lithium atmosphere roller kiln |
Design temperature: 1300℃ | Heating element: silicon carbon rod |
Working temperature: 950℃~1200℃. | Power supply: AC380V±10%, 3-phase 5-wire, 50HZ |
Furnace atmosphere: nitrogen, oxygen | Furnace length: 8m~60m |
Product placement: four rows of double layer or six rows of double layer | Furnace structure: flat roof or vaulted roof |
Applicable materials: high nickel ternary cathode materials, lithium iron phosphate cathode materials, sodium cathode materials |
